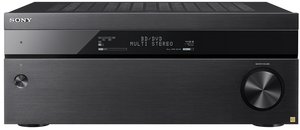

7.2ch AV Receiver
7.2ch AV Receiver for Custom Installation | STR-ZA1100ES
Enjoy flexible connectivity and high-fidelity sound from this 7.2-channel 4K AV receiver with Dolby® Atmos and DTS:X object-based surround sound. eARC1, 2 lets you enjoy these latest audio formats with one-cable HDMI connection from your compatible TV. Add in full 4K HDR compatibility and easy IP integration with leading control systems and you have the total package of installation-friendly features and audio/video performance.
7.2 channels for deeply immersive surround soundLose yourself in every soundtrack thanks to 7.2 channels of room-filling surround sound, with 100 W of power per channel. You can connect up to two active subwoofers for even bass distribution around the room. So whether you're watching movies, playing games, or listening to your favorite songs, you'll enjoy a next-level entertainment experience.
Seamless auto-calibrationDCAC EX uses a stereo mic to measure speaker positioning down to the nearest centimeter, before automatically adjusting frequencies, phase, and delays for better sound positioning. It then tunes your speakers using a 31-band EQ, for a listening experience that's tailored to your room.
See clearly with HDR (High Dynamic Range)By supporting HDR signal pass-through, you can enjoy the incredible jump in image contrast and brightness it brings-and the additional shadow detail and highlights further enhance picture detail and bring colors to life. Latest HDR standard such as HDR10, HLG (Hybrid Log-Gamma), and Dolby Vision™3 are supported.
Connect multiple remotesDiscrete IR codes let you connect multiple third-party and independent remotes, for easy and versatile control.
Experience cinematic IMAX soundThis Sony receiver is an IMAX enhanced4 product, ready to deliver the highest standard of sound and clarity. Take comfort in knowing you'll be enjoying a fully cinematic audio experience at-home with this receiver, that takes full advantage of IMAX enhanced content.
Frame and beam chassisThe STR-ZA series chassis uses a frame and beam design with all four corners embossed to better support the power transformer and heat sink. This minimizes external sound pressure so audio is more focused, responsive, and powerful.
|Number of Amp. Channels||7ch|
|Number of Decodable Channels||7ch + Phantom 2ch|
|Power Output||100 W + 100 W (8 ohms, 1 kHz, 2ch, THD 0.9%)|
|Sound Field||2ch Stereo
|HDR (High Dynamic Range)||Yes|
|Audio Return Channel||Yes (eARC / ARC)|
|HDMI® Pass Through||Yes|
|3D over HDMI||Yes|
|4K 60p 4:4:4 Support||Yes|
|A/V SYNC||Yes (Variable)|
|BRAVIA® SYNC™ (CEC Control)||Yes (One-Touch Play, System Audio Control, System Power Off)|
|Sound Enhancement Technologies||Pure Direct
Center Speaker Lift Up
Digital Legato Linear
In-Ceiling Speaker Mode
|Auto Speaker Calibration|
|Calibration Features||DCAC EX, Speaker Relocation, Phantom Surround Back, Automatic Phase Matching, Calibration Mic (Stereo)|
|FM/AM||Yes / Yes|
|Preset Channel (FM/AM)||TTL60 (30/30)|
|HDMI supporting HDCP2.2 In/Out||5/2|
|Input and Output Terminals||Audio Input Opt (2); Audio Input Coax (1); Analog Audio Input (4); Pre Out Subwoofer (2); Component Video Input (2 Assignable); Composite Video Input (2); Composite Monitor Out (1); USB (1 Front); Ethernet Port (1 (0))|
|Speaker Output Terminals||Front A, Center, Surround, Surround Back, Zone 2 (Common with Surround Back), Height (Common with Surround Back), Front B (Common with Surround Back), Bi-AMP (Common with Surround Back)|
|Decoding Format for HDMI|
|Decoding Format for HDMI||DSD
Dolby® Dual Mono
DTS HD MA,
DTS HD HR
DTS-ES (Matrix6.1 / Discrete6.1)
DTS 96 / 24
|Custom Install & Control Features|
|Zone2 Audio||Speaker (Variable) / Line (Variable, Fixed)|
|IR Repeat (In/Out)||Yes (1/2)|
|GUI (Graphical User Interface)||Yes (Only through HDMI)|
|Power Requirement||120V 60Hz|
|Size & Weight|
|Dimensions (W x H x D in)||16.93 x 6.85 x 16.14"|
|Weight (lb)||27lb 13oz|
