9.2ch AV Receiver

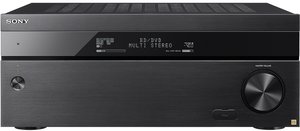

9.2ch AV Receiver for Custom Installation | STR-ZA5000ES
The new center of your theater system, the STR-ZA5000ES offers up to 11.1-channel immersive sound (9.2ch discrete onboard amplifiers) from both Dolby Atmos® and DTS:X1, and all the features that enthusiasts and custom-installers could want. Enjoy full-quality 4K/60p video pass-through, with HDR and HDCP 2.2 support, and a wealth of connection options for multi-room and network distribution. With premium ES build quality, and a focus on sound purity, it lives up to its flagship status.
9.2 channels for deeply immersive surround sound
Lose yourself in every soundtrack thanks to 9.2 channels of room-filling surround sound, with 130 W of power per channel. You can connect up to two active subwoofers for even bass distribution around the room. So whether you're watching movies, playing games, or listening to your favorite songs, you'll enjoy a next-level entertainment experience.
7.1.4-channel surround immersion
Defy space restrictions and experience full 7-channel surround sound, including 2 overhead speakers.
Dolby Atmos
Atmos treats sounds as separate objects, releasing them from typical channels to move freely around and even above you, for deeply immersive surround sound.
DTS:X
DTS:X can create an unlimited number of audio objects which adapt to your speakers in real time, to get the biggest impact out of every movie soundtrack.Seamless auto-calibration
DCAC EX uses a stereo mic to measure speaker positioning down to the nearest centimeter, before automatically adjusting frequencies, phase, and delays for better sound positioning. It then tunes your speakers using a 31-band EQ, for a listening experience that's tailored to your room.
In-ceiling speaker mode
Easily configured during setup, In-ceiling mode relocates front speaker audio so dialog sounds as if it's coming from the screen, instead of from above.
6 x HDMI inputs, 2 x HDMI outputs
Bring all your home theater together. With 6 HDMI inputs you can connect an Internet TV box, Blu-ray Disc™ player and games console all at once, and still have room to expand.
Enjoy consistent 4K content
Maintain 4K quality from source to screen-the 4K pass-through feature allows data to pass through the receiver without compromising image quality, and is HDCP 2.2-compatible.
See more detail with 4K upscale
Video upscaling gives you higher quality and more visible detail, so you can see more detail in everything.
See clearly with HDR (High Dynamic Range)
By supporting HDR signal pass-through, you can enjoy the incredible jump in image contrast and brightness it brings-and the additional shadow detail and highlights further enhance picture detail and bring colors to life. Latest HDR standard such as HDR10, HLG (Hybrid Log-Gamma), and Dolby Vision™2 are supported.Connect multiple remotes
Discrete IR codes let you connect multiple third-party and independent remotes, for easy and versatile control.
Web browser configurable
View, program, and edit your receiver settings from your computer, smartphone, or tablet. Just enter the receiver's IP address into your browser.
Music Connect
Music Connect allows Z-series AV receivers to slave to the HAP-Z1ES Hi-Res Audio player and other networked music players. So you can combine the power of an ES-grade multichannel sound system with the flexibility of today's wireless multi-zone music systems.
Experience cinematic IMAX sound
This Sony receiver is an IMAX enhanced3 product, ready to deliver the highest standard of sound and clarity. Take comfort in knowing you'll be enjoying a fully cinematic audio experience at-home with this receiver, that takes full advantage of IMAX enhanced content.
8-Port Gigabit Ethernet switch
An 8-Port Ethernet switch lets you connect to computers, servers, or media boxes. Two of the ports support Power over Ethernet.
Simple control with a Graphic User Interface
Easily set up your receiver and navigate settings from the home menu. Control what you watch, see which devices are connected, and choose how you want to listen with preset sound modes.
Power amplifier
For greater stability and output power a glass-epoxy circuit board is used. Unlike cheaper resin boards, internal vibrations are reduced for less distortion, just clear high power from each of the discrete amplifiers.
Frame and beam chassis
The STR-ZA series chassis uses a frame and beam design with all four corners embossed to better support the power transformer and heat sink. This minimizes external sound pressure so audio is more focused, responsive, and powerful.
Class-leading high-purity pre-amplifier
The new pre-amp goes way beyond other receivers in this class for optimum High-Resolution Audio delivery. A single-point ground and independent power supply promotes purer sound with less interference.| Amplifier | |
|---|---|
| Number of Amp. Channels | 9ch |
| Number of Decodable Channels | 11.1ch |
| Power Output | 130 W + 130 W (8 ohms, 1 kHz, THD 0.9%) |
| Sound Field | 2 channel Direct A.F.D. Auto Multi Stereo Dolby Surround - Neural: X |
| Video Features | |
| HDR (High Dynamic Range) | Yes |
| Audio Return Channel | Yes |
| HDMI® Pass Through | Yes |
| 3D over HDMI | Yes |
| 4K 60p 4:4:4 Support | Yes (Except HDMI IN6) |
| A/V SYNC | Yes (Variable) |
| BRAVIA® SYNC™ (CEC Control) | Yes (One-Touch Play, System Audio Control, System Power Off) |
| Audio Features | |
| Sound Enhancement Technologies | Pure Direct Sound Optimizer Center Speaker Lift Up Digital Legato Linear In-Ceiling Speaker Mode |
| Auto Speaker Calibration | |
| Calibration Features | DCAC EX, Speaker Relocation; Automatic Phase Matching; Calibration Mic (Stereo) |
| Tuner Features | |
| FM/AM | Yes / Yes |
| Preset Channel (FM/AM) | TTL60 (30/30) |
| Interface | |
| HDMI supporting HDCP2.2 In/Out | 6/2 |
| Input and Output Terminals | Audio Input Opt (2);Audio Input Coax (1);Analog Audio Input (4);Pre Out Subwoofer (2); Component Video Input (2 Assignable);Composite Video Input (2);Composite Monitor Out (2);Component Monitor Out (2);USB (1 Front);Ethernet Port (8 (2) ) |
| Speaker Output Terminals | Front A Center Surround Surround Back Height1 Height2 Zone2 (Common with Surround back) Front B (Common with Surround back) Bi-AMP (Common with Surround back) |
| Decoding Format for HDMI | |
| Decoding Format for HDMI | DSD Dolby Atmos Dolby® Dual Mono DTS:X DTS HD MA, DTS HD HR DTS DTS-ES (Matrix6.1 / Discrete6.1) DTS 96 / 24 |
| Custom Install & Control Features | |
| Zone2 Audio | Speaker (Variable) / Line (Variable, Fixed) |
| HDMI Zone | Yes |
| IR Repeat (In/Out) | Yes (1/2) |
| General Features | |
| Auto Standby | Yes |
| GUI (Graphical User Interface) | Yes |
| Power Requirement | 120V 60Hz |
| Size & Weight | |
| Dimensions (W x H x D in) | 16.93 x 6.85 x 16.14" |
| Weight (lb) | 37.70 lb |
