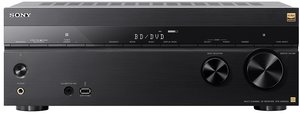

7.2ch AV Receiver for Custom Installation | STR-ZA810ES
Enjoy flexible connectivity and high-fidelity sound from this 7.2-channel 4K AV receiver with Dolby Atmos® and DTS:X object-based surround sound. eARC1, 2 lets you enjoy these latest audio formats with one-cable HDMI connection from your compatible TV. Add in full 4K HDR compatibility and easy IP integration with leading control systems and you have the total package of installation-friendly features and audio/video performance.
7.2 channels for deeply immersive surround soundLose yourself in every soundtrack thanks to 7.2 channels of room-filling surround sound, with 100 W of power per channel. You can connect up to two active subwoofers for even bass distribution around the room. So whether you're watching movies, playing games, or listening to your favorite songs, you'll enjoy a next-level entertainment experience.
Seamless auto-calibrationDCAC EX uses a stereo mic to measure speaker positioning down to the nearest centimeter, before automatically adjusting frequencies, phase, and delays for better sound positioning. It then tunes your speakers using a 31-band EQ, for a listening experience that's tailored to your room.
See clearly with HDR (High Dynamic Range)5By supporting HDR signal pass-through, you can enjoy the incredible jump in image contrast and brightness it brings-and the additional shadow detail and highlights further enhance picture detail and bring colors to life. Latest HDR standard such as HDR10, HLG (Hybrid Log-Gamma), and Dolby Vision™6 are supported.
High-Resolution Audio7 file formatsThe STR-ZA810ES supports a wide variety of High-Resolution Audio7 formats, including both DSD and Linear PCM. What's more, playback is possible with USB and DLNA connectivity, and multichannel capabilities let you incorporate the high-quality sound into an immersive surround system.
Chromecast built-in8, 9Cast music, podcasts, and radio from 100+ audio apps, including Google Play™9Music and more from your smartphone, tablet, or laptop to your audio device. Just tap the Cast button.
Connect multiple remotesDiscrete IR remotes let you connect multiple third-party and independent remotes, for easy and versatile control.
Stream music through the house with Music Center11, 12, 13Listen to the same great song all around the house with multi-room listening, controlled via the Music Center app. Use the app to group selected Sony receivers and speakers together, then stream music in multiple rooms.11, 12, 13.
Seamless connectivity, maximum controlControl music playback from your smartphone with the Music Center app. Connect via Bluetooth® or NFC to stream your music library from your device and home network, or to access unlimited online streaming.
Simple control with a Graphic User InterfaceEasily set up your receiver and navigate settings from the home menu. Control what you watch, see which devices are connected, and choose how you want to listen with preset sound modes.
|Number of Amp. Channels||7ch|
|Number of Decodable Channels||7ch + Phantom 2ch|
|Power Output||100 W + 100 W (8 ohms, 1 kHz, 2ch, THD 0.9%)|
|Sound Field||2ch Stereo
Multi Ch Stereo
|HDR (High Dynamic Range)||Yes|
|Audio Return Channel||Yes (eARC / ARC)|
|HDMI® Pass Through||Yes|
|3D over HDMI||Yes|
|4K 60p 4:4:4 Support||Yes (Except for VIDEO1 input)|
|A/V SYNC||Yes (Variable)|
|BRAVIA® SYNC™ (CEC Control)||Yes (One-Touch Play, System Audio Control, System Power Off)|
|Sound Enhancement Technologies||DSD Native Playback
Center Speaker Lift Up
Digital Legato Linear
In-Ceiling Speaker Mode
|Auto Speaker Calibration|
|Calibration Features||DCAC EX, Speaker Relocation, Phantom Surround Back, Automatic Phase Matching, Calibration Mic (Stereo)|
|Preset Channel (FM/AM)||TTL30 (30/-)|
|HDMI supporting HDCP2.2 In/Out||6/2|
|Input and Output Terminals||Audio Input Opt (1); Audio Input Coax (1); Analog Audio Input (4); Pre Out Subwoofer (2); Composite Video Input (2); Composite Monitor Out (1); Headphone Output (1); USB (1 Front); Ethernet Port (1 (0))|
|Speaker Output Terminals||Front A, Center, Surround, Surround Back, Zone2, Height (Common with Surround Back), Front B (Common with Surround Back), Bi-AMP (Common with Surround Back)|
|Decoding Format for HDMI|
|Decoding Format for HDMI||DSD
Dolby® Dual Mono
DTS HD MA,
DTS HD HR
DTS-ES (Matrix6.1 / Discrete6.1)
DTS 96 / 24
|Decoding Format for USB/Network Client|
|Hi-Res Format||DSDIFF (DSD): Up to 5.6 MHz 5.1ch, DSF: Up to 5.6 MHz 5.1ch, WAV (LCPM): Up to 192 kHz/24 bit 7.1ch, AIFF (LCPM): Up to 192 kHz/24 bit 5.1ch, FLAC: Up to 192 kHz/24 bit 5.1ch, ALAC: Up to 192 kHz/24 bit 5.1ch|
|Other Format||[MP3].MP3, [AAC/HE-AAC].m4a, .AAC, [WMA9 Standard].WMA|
|Network features||Bluetooth® Receiver, Bluetooth® Transmitter, NFC, Wi-Fi®, AirPlay, Mobile Control Application, Wireless Multi-Room|
|Custom Install & Control Features|
|Zone2 Audio||Speaker (Variable) / Line (Variable, Fixed)|
|IR Repeat (In/Out)||Yes (1/1)|
|GUI (Graphical User Interface)||Yes (Only through HDMI)|
|Power Requirement||120V 60Hz|
|Size & Weight|
|Dimensions (W x H x D in)||16.92 x 6.14 x 13.03 in (430 x 156 x 331 mm)|
|Weight (lb)||20lb 1oz (9.1 kg)|
